Analysing results

This article covers extracting and visualising results from fitted back-calculation models, including the full set of available quantities, model comparison, and working with real data.

library(cd4backcalc)
library(patchwork)

Available quantities

After fitting a model with run_backcalc(), several quantities can be plotted or extracted. The available quantities depend on the model type:

All models:

Quantity	Description
"incidence"	Estimated HIV incidence over time
"undiag_prev"	Estimated undiagnosed HIV prevalence
"diagnoses"	Expected vs observed diagnoses
"diag_prob"	Estimated diagnosis probabilities by CD4 stratum

Migration models (additional):

Quantity	Description
"all_migration"	Estimated overall migration with HIV
"undiag_migration"	Estimated undiagnosed migration
"diag_prob_mig"	Estimated diagnosis probabilities for migrants by CD4 stratum
"migration_prob"	Estimated migration probabilities
"ratio_abroad_uk"	Proportion of infections acquired in the UK
"transfers"	Estimated transfers of care
"transfers_detected"	Estimated detected transfers of care
"detect_prob"	Estimated detection probabilities

Age-dependent models (additional):

Quantity	Description
"incidence_age"	Incidence stratified by age group
"undiag_prev_age"	Undiagnosed prevalence by age group
"diagnoses_age"	Diagnoses by age group
"diag_prob_age"	Diagnosis probabilities by CD4 stratum and age

Age-dependent migration models (additional):

Quantity	Description
"undiag_migration_age"	Undiagnosed migration by age group
"diag_prob_mig_age"	Migrant diagnosis probabilities by CD4 stratum and age

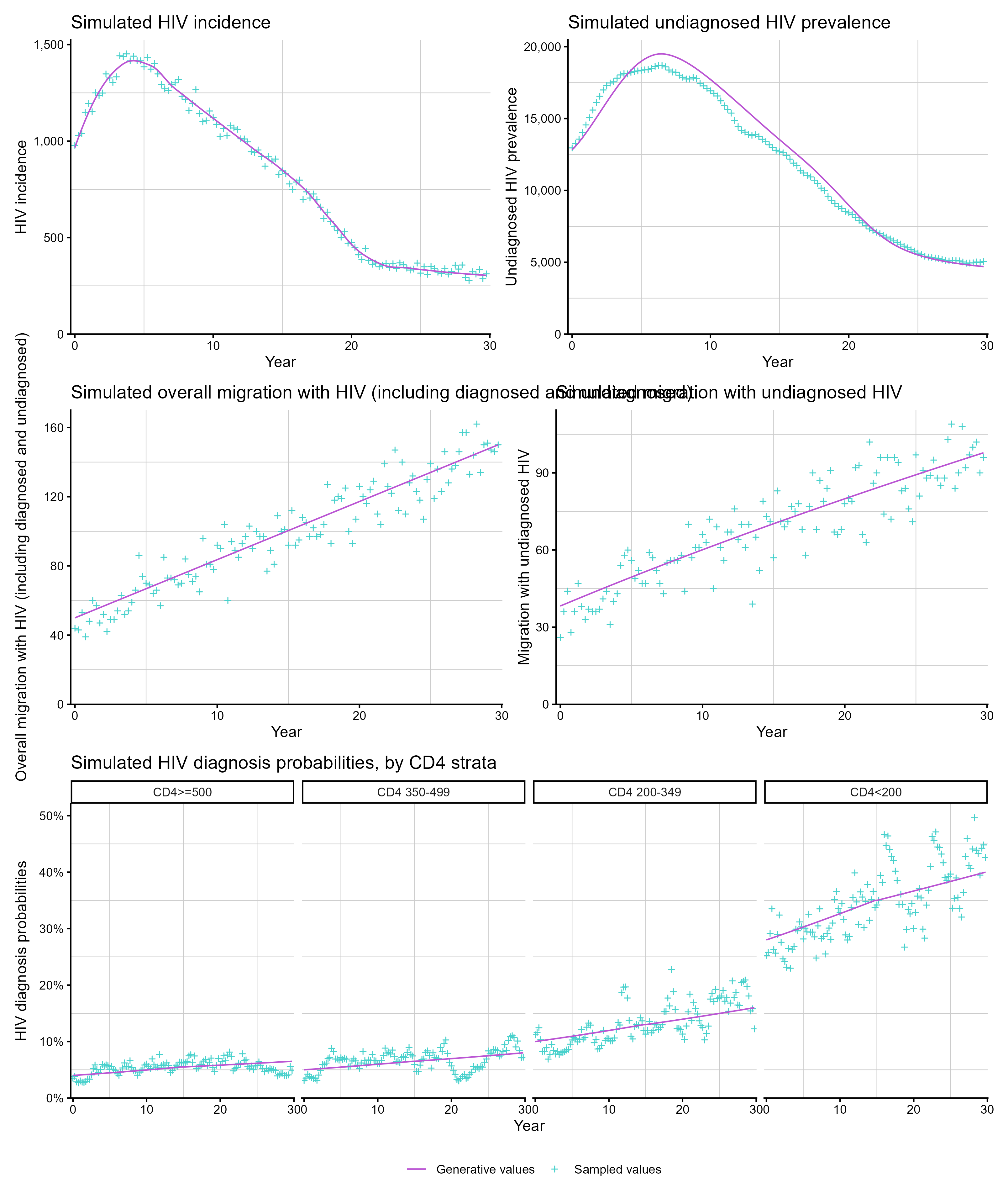

Plotting simulated data

Before fitting, simulated quantities can be inspected with plot_simulations():

sim_diags <- simulate_diagnoses(sim_type = "combo_3", migration = TRUE)

p1 <- plot_simulations(sim_diags, quantity = "incidence")
p2 <- plot_simulations(sim_diags, quantity = "undiag_prev")
p3 <- plot_simulations(sim_diags, quantity = "all_migration")
p4 <- plot_simulations(sim_diags, quantity = "undiag_migration")
p5 <- plot_simulations(sim_diags, quantity = "diag_prob")

(p1 + p2) / (p3 + p4) / p5

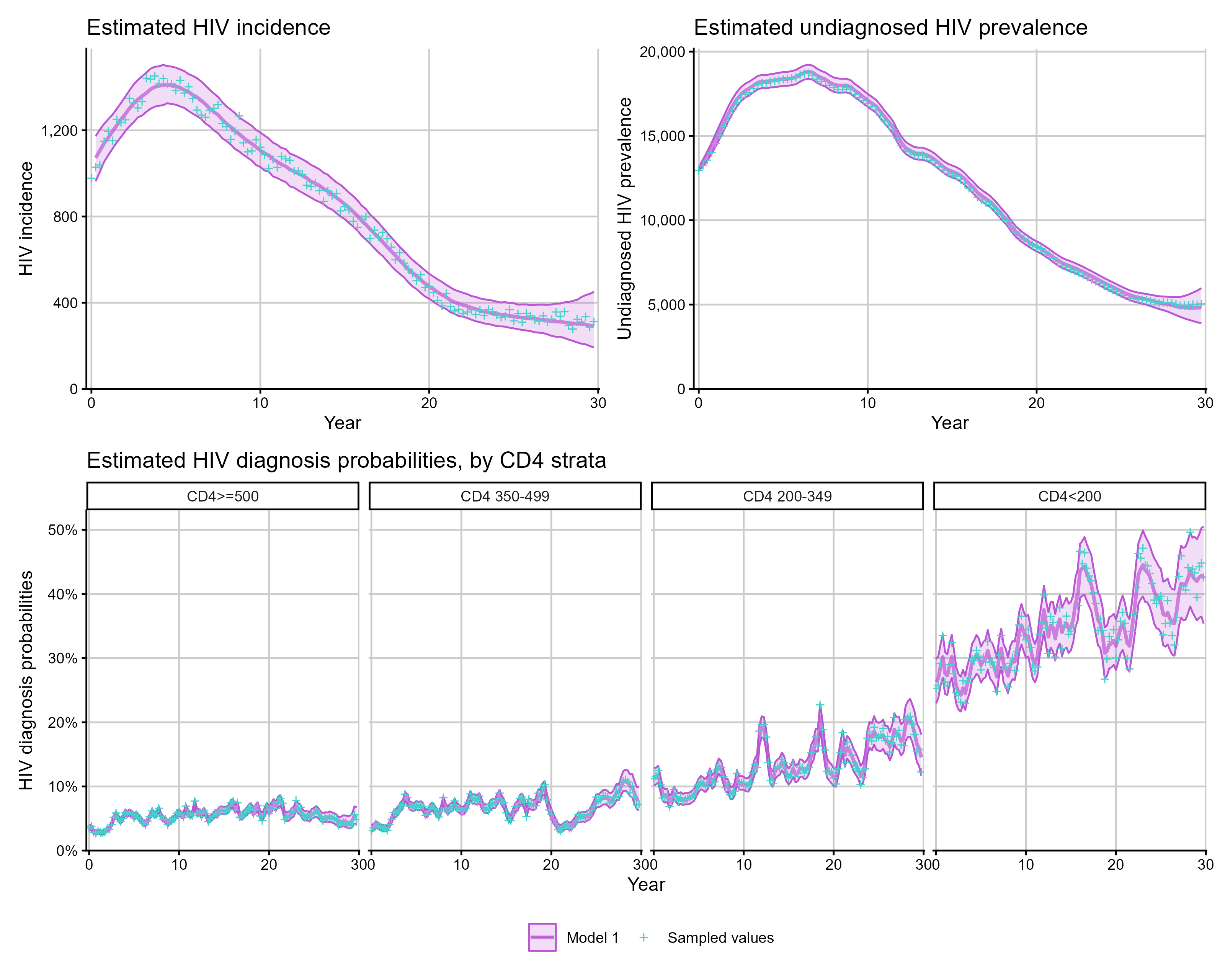

Plotting model estimates

plot_estimates() shows posterior median and 95% credible intervals. When simulated data is present, the true values are shown for comparison:

hiv_list <- run_backcalc(sim_diags)

p1 <- plot_estimates(hiv_list, quantity = "incidence")
p2 <- plot_estimates(hiv_list, quantity = "undiag_prev")
p3 <- plot_estimates(hiv_list, quantity = "diag_prob")

(p1 + p2) / p3

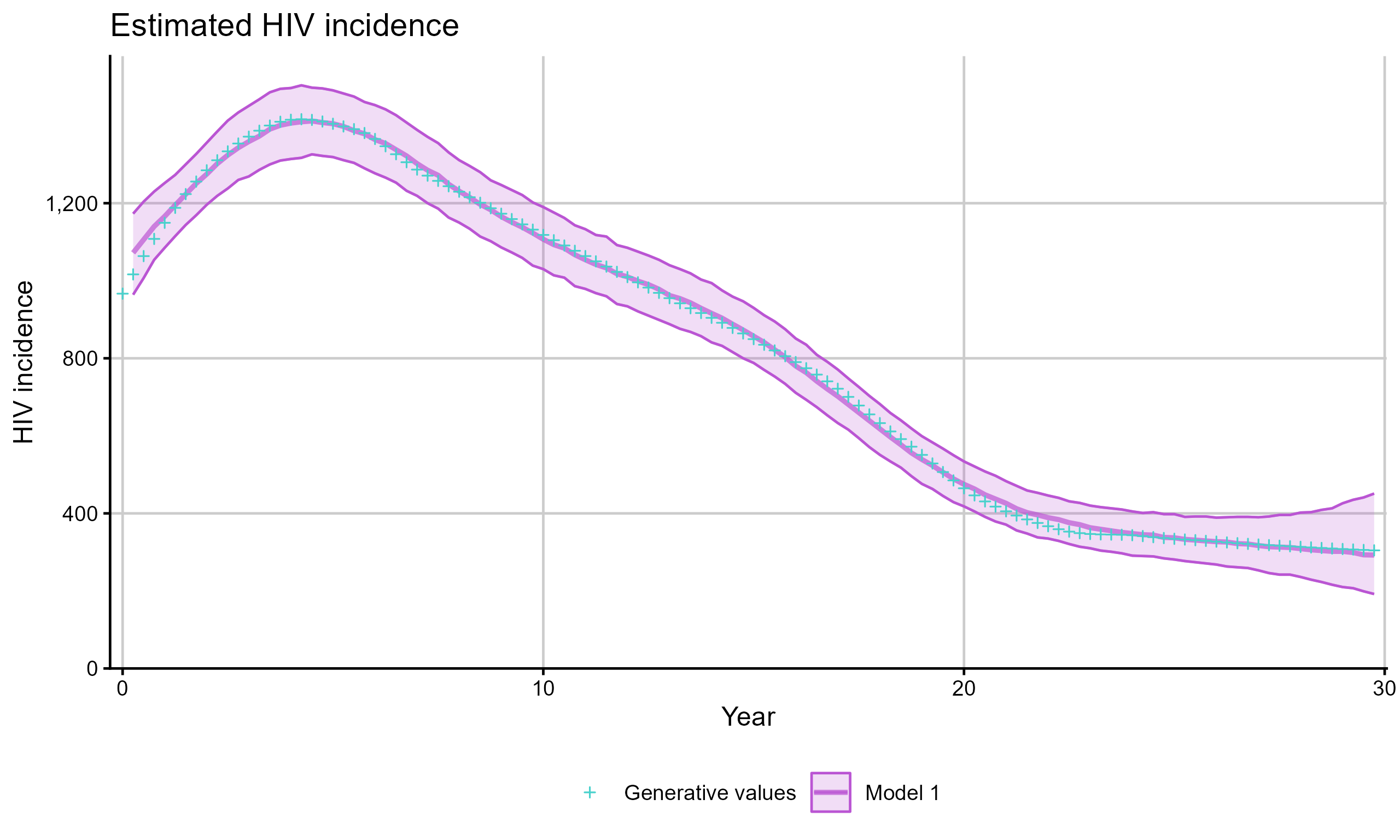

By default, plotting and summary diagnostics compare fitted values with the sampled realisation from the simulation. To compare against the generative expectation from a particular simulation seed instead, set sim_comparison = "generative":

plot_estimates(
  hiv_list,
  quantity = "incidence",
  sim_comparison = "generative"
)

The same argument is available in bias_plot() and mse_plot().

Extracting estimates as data

Use get_estimates() to obtain the posterior summary as a tibble for custom analysis:

inc_df <- get_estimates(hiv_list, quantity = "incidence")
head(inc_df)

# A tibble: 6 × 6
   year `2.5%` `50%` `97.5%` group   iteration
  <dbl>  <dbl> <dbl>   <dbl> <chr>       <int>
1  0        0      0      0  Model 1         1
2  0.25   964   1072   1173  Model 1         1
3  0.5   1007.  1106   1204  Model 1         1
4  0.75  1054.  1140   1230. Model 1         1
5  1     1085.  1166   1252. Model 1         1
6  1.25  1115.  1195   1273  Model 1         1

Extracting simulated quantities

Use extract_simulated_quantity() to extract the true simulated values for comparison:

sim_inc <- extract_simulated_quantity(sim_diags, quantity = "incidence")
head(sim_inc)

# A tibble: 6 × 3
  value  year group
  <dbl> <dbl> <chr>
1   978  0    Generative values
2  1029  0.25 Generative values
3  1039  0.5  Generative values
4  1149  0.75 Generative values
5  1195  1    Generative values
6  1152  1.25 Generative values

Use extract_real_data() to extract the observed data used for fitting:

obs <- extract_real_data(hiv_list, quantity = "diagnoses")
head(obs)

# A tibble: 6 × 3
  value  year group
  <dbl> <dbl> <chr>
1   715  0    Observed values
2   769  0.25 Observed values
3   771  0.5  Observed values
4   737  0.75 Observed values
5   689  1    Observed values
6   703  1.25 Observed values

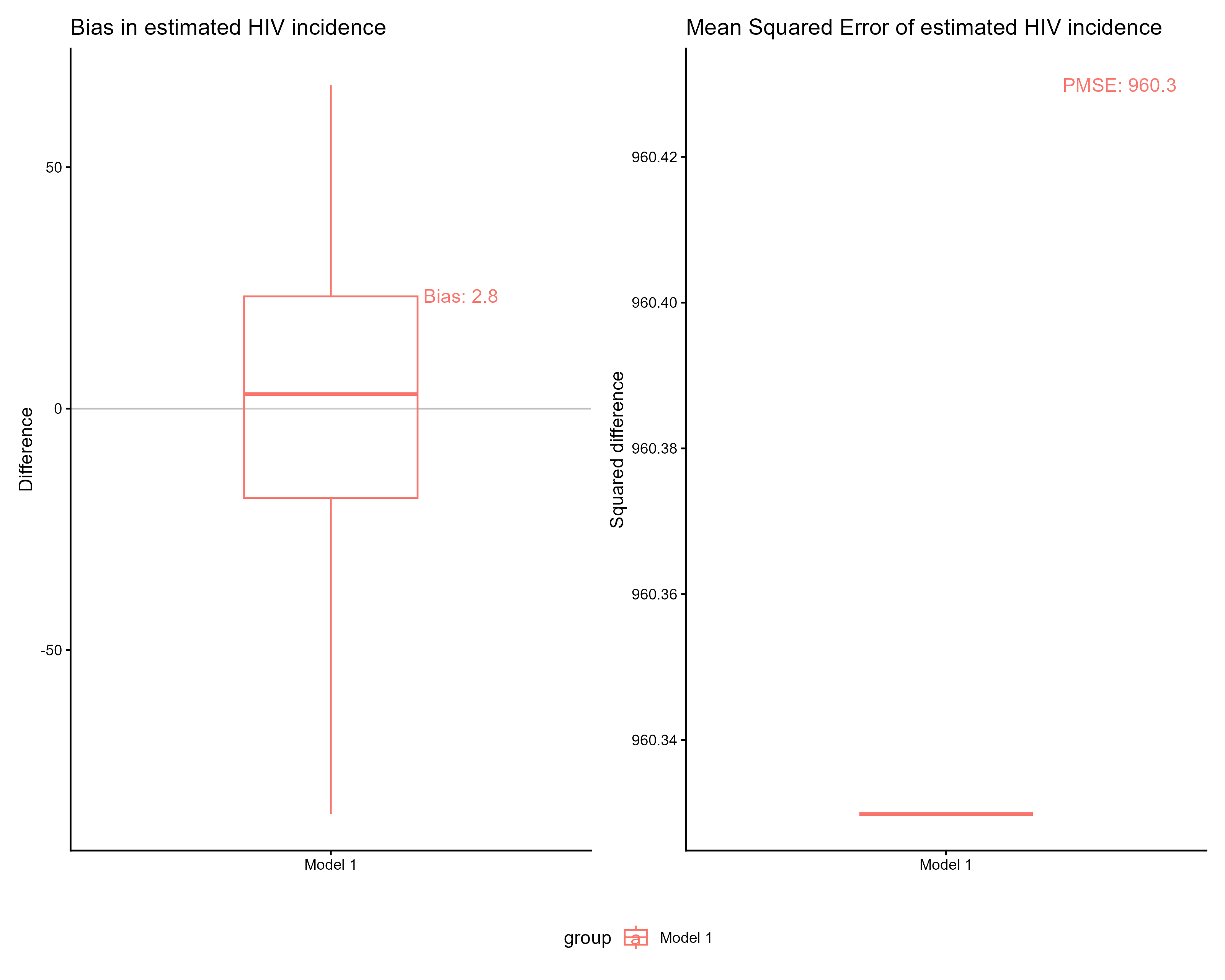

Bias and MSE

When fitting to simulated data, bias_plot() shows how much the model over- or under-estimates each quantity and mse_plot() summarises mean squared error across one or more simulated fits:

p1 <- bias_plot(list(hiv_list), quantity = "incidence")
p2 <- mse_plot(list(hiv_list), quantity = "incidence")

p1 + p2

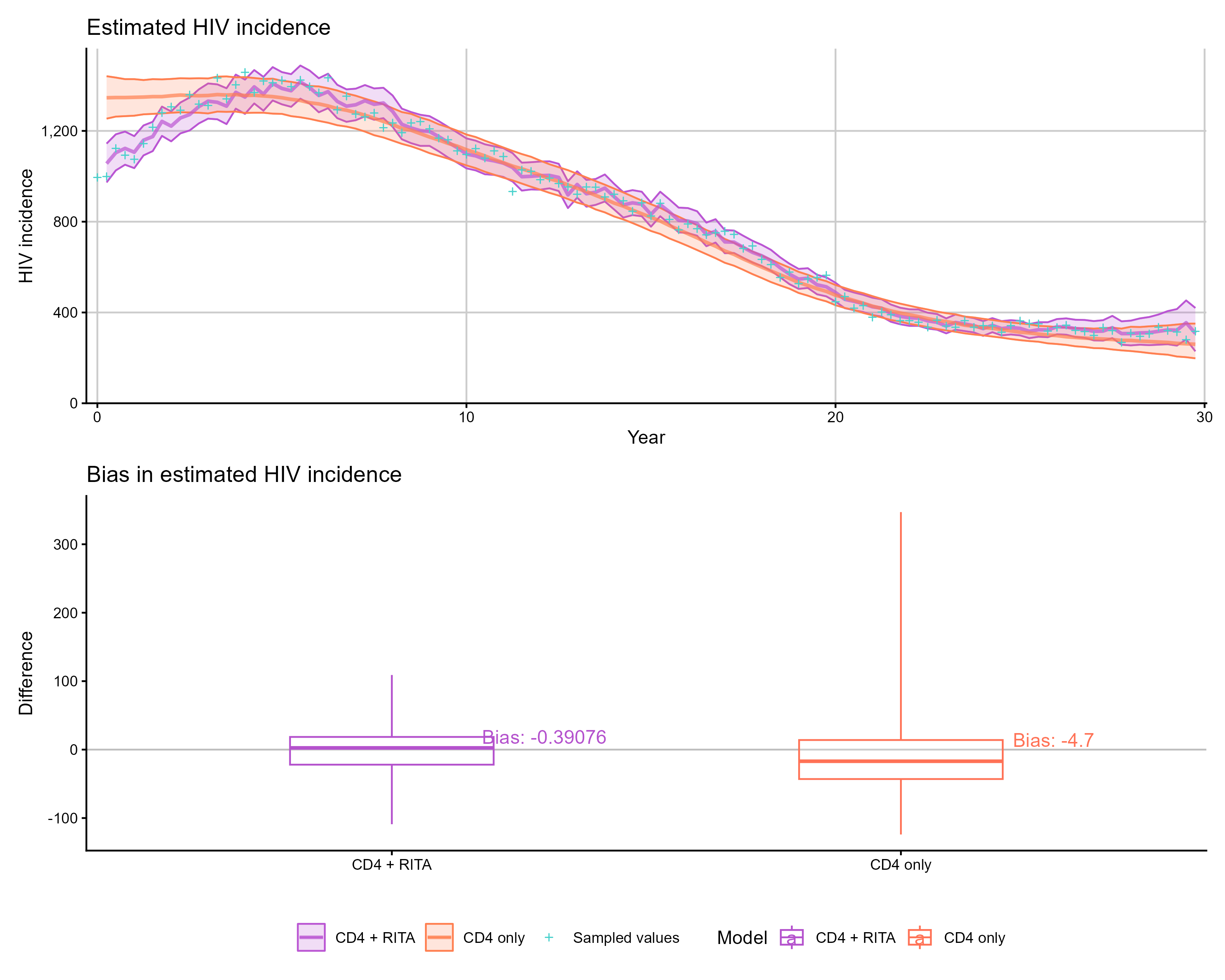

Comparing two models

bias_plot() and mse_plot() accept a named list of models for side-by-side comparison:

sim_diags <- simulate_diagnoses(sim_type = "combo_3", rita = TRUE)
model_rita <- run_backcalc(sim_diags)

sim_cd4 <- sim_remodel(sim_diags, rita = FALSE)
model_cd4 <- run_backcalc(sim_cd4, rita = FALSE)

p1 <- plot_estimates(
  model_rita,
  hiv_list_2 = model_cd4,
  quantity = "incidence",
  model_1_name = "CD4 + RITA",
  model_2_name = "CD4 only"
)

p2 <- bias_plot(
  list("CD4 + RITA" = model_rita, "CD4 only" = model_cd4),
  quantity = "incidence"
)

p1 / p2

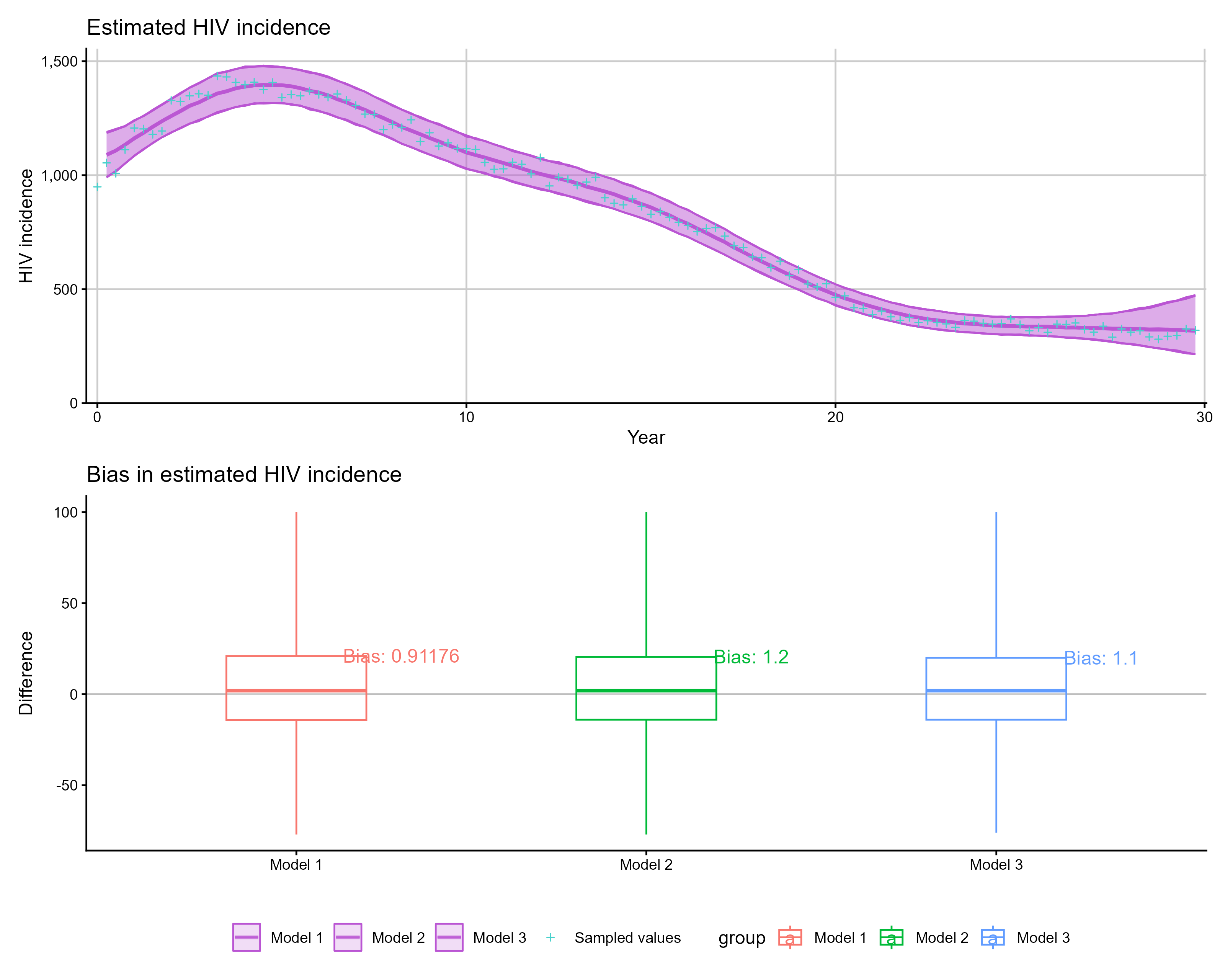

Comparing multiple models

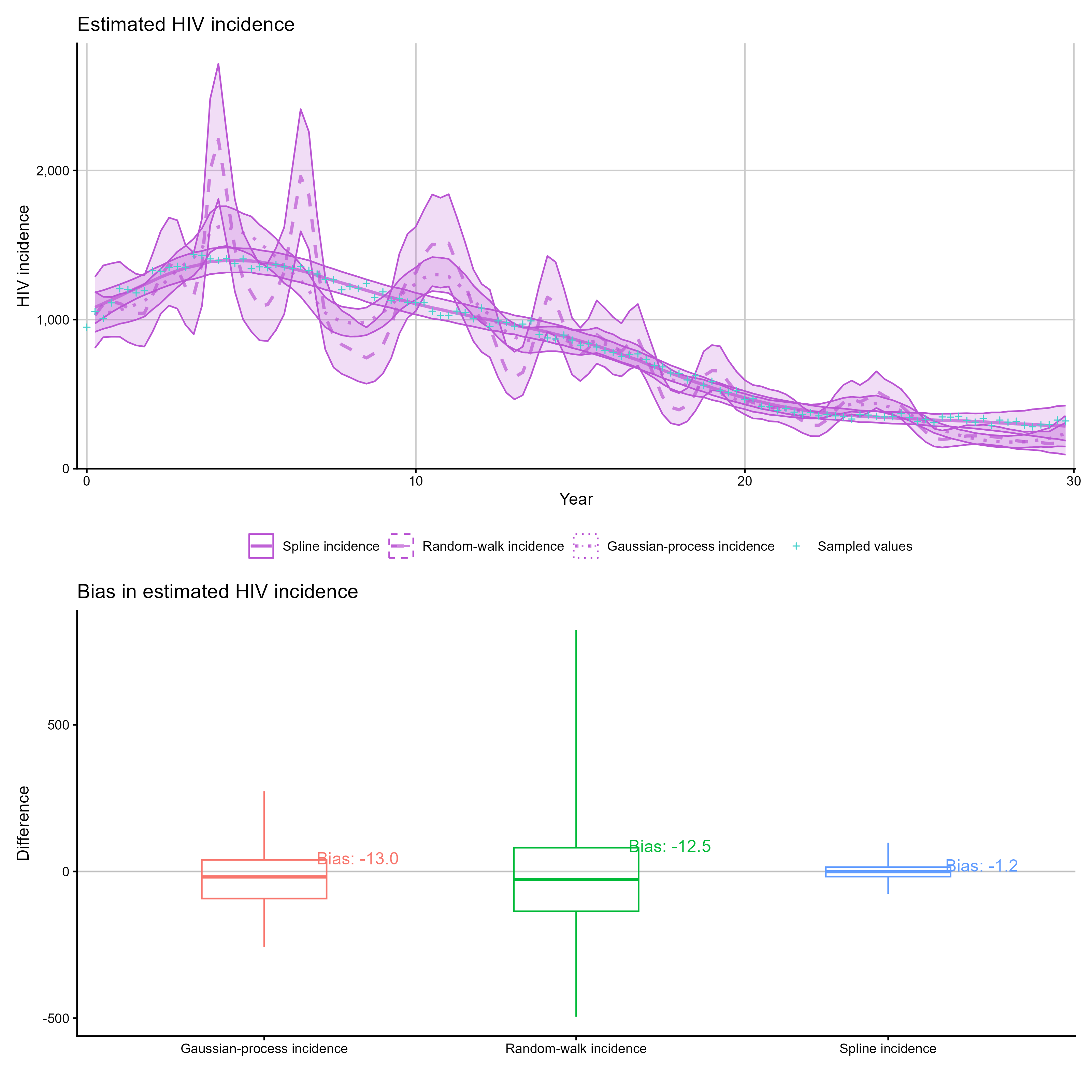

Pass a list of model fits to compare more than two models simultaneously:

sim_diags <- simulate_diagnoses(sim_type = "combo_3")
models <- list()
for (i in 1:3) {
  models[[i]] <- run_backcalc(sim_diags, model_seed = 100 + i)
}

p1 <- plot_estimates(models, quantity = "incidence")
p2 <- bias_plot(models, quantity = "incidence")

p1 / p2

Working with real data

When fitting to real (non-simulated) data, plotting and extraction functions still work — the simulated truth overlay is simply omitted. The stan_data object should contain the diagnosis arrays required for the chosen model, with matching migration, rita, and age flags supplied to run_backcalc().

hiv_list <- run_backcalc(
  real_stan_data,
  migration = TRUE,
  rita = TRUE,
  age = FALSE
)

plot_estimates(hiv_list, quantity = "incidence")
plot_estimates(hiv_list, quantity = "diagnoses")
extract_real_data(hiv_list, quantity = "diagnoses")

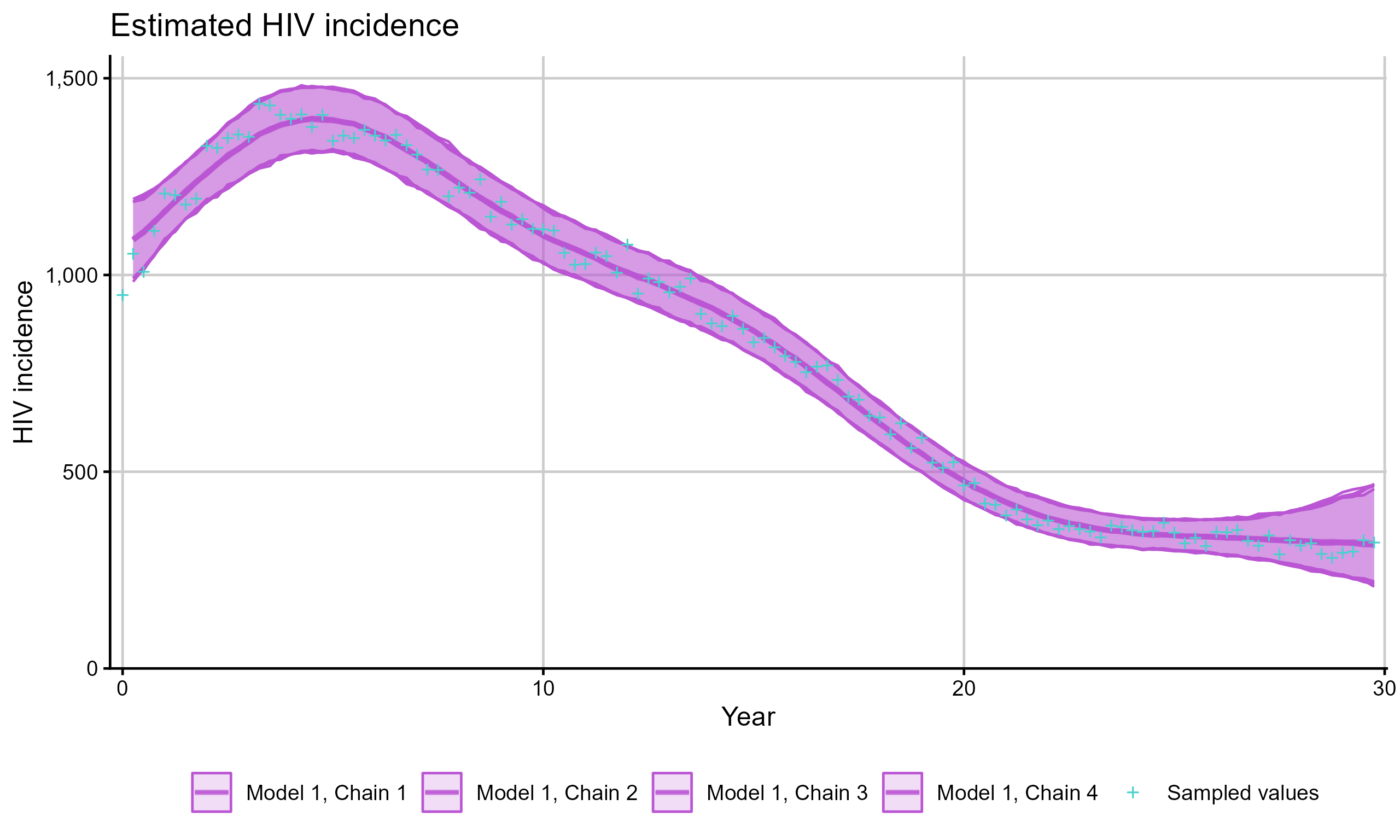

Per-chain results

For detailed convergence analysis, set chain_results = TRUE in run_backcalc() to obtain separate posterior summaries for each chain:

hiv_list <- run_backcalc(sim_diags, chain_results = TRUE)
plot_estimates(hiv_list, quantity = "incidence", chain_results = TRUE)
